Eicher

6016 H LP

Eicher 6016, is the hallmark of Performance, Reliability and Fuel Efficiency. The new 6000 range is equipped with VEDX5 engine and world class Engine Management System (EMS) based on Volvo group’s global platform, high pressure Denso FIE system and reinforced Domex® chassis to make it the most reliable product in its class. Features like cruise control, Fuel Coaching, Mbooster+ and intelligent Engine Protection System (EPS) make the Eicher 6016 a preferred choice for intercity, Route Permit and staff applications.

Specification

Features6016 H LP
Wheelbase 4200 mm
Overall length 8082 mm
Overall width 2540 mm
Overall height 2728 mm
Ground clearance245 mm
Front overhang1362 mm
Rear overhang 2520 mm
Turning circle diameter 18.9 m

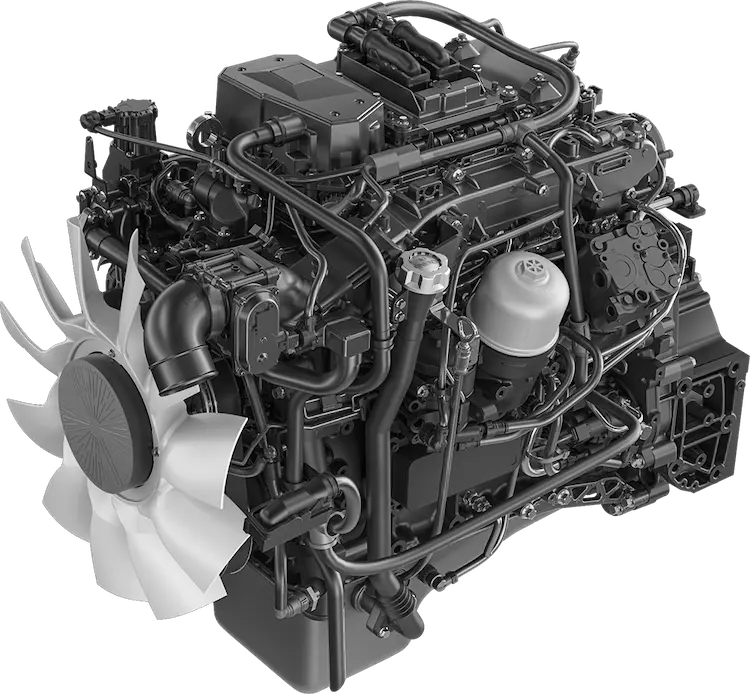

Engine make VEDX5
Displacement (cc)5132
Power 155 kW @ 2200 Rpm
Torque 825 Nm@1200-1600 Rpm
Clutch diameter 395 mm

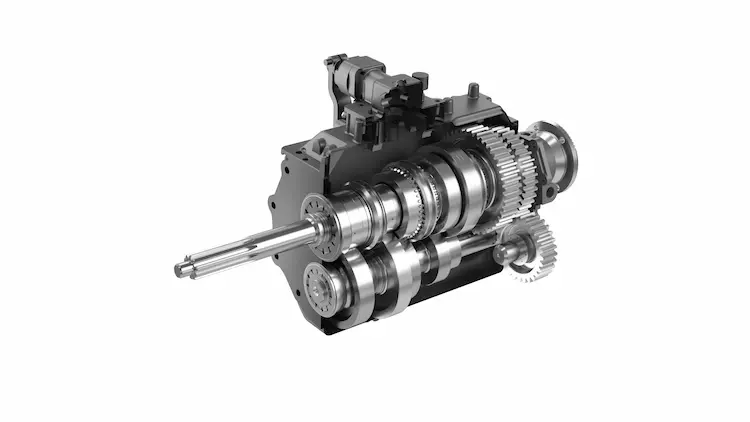

Transmission makeET70S6
Transmission type Synchromesh 6SPeed+1Rev
GVW 16.2 t

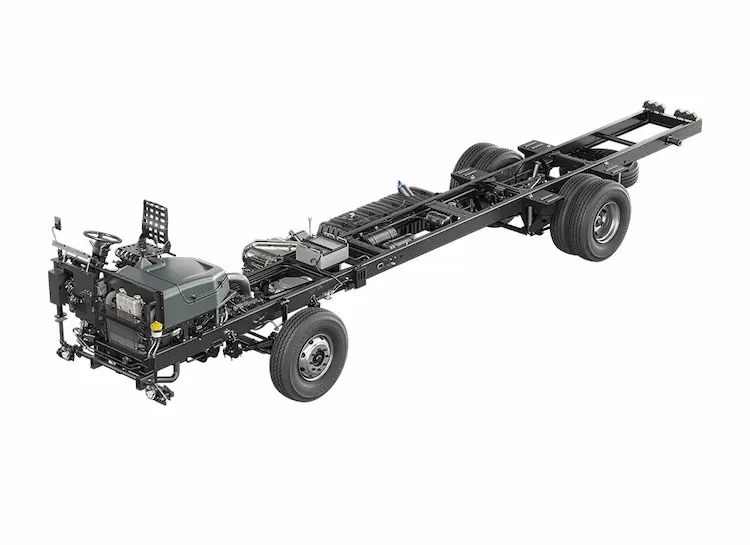

Chassis type Domex 650 straight frame
Chassis dimension  230 x 76 x 6 mm
Fuel tank capacity 250 litres
Brakes Dual Circuit 'S' Cam Full Air brakes
Tyres10R20-16PR
Suspension Weveller-Front
Weveller-Rear
Steering Power steering
Battery2x12V, 150Ah
Alternator 90A
DEF tank capacity33 litres
