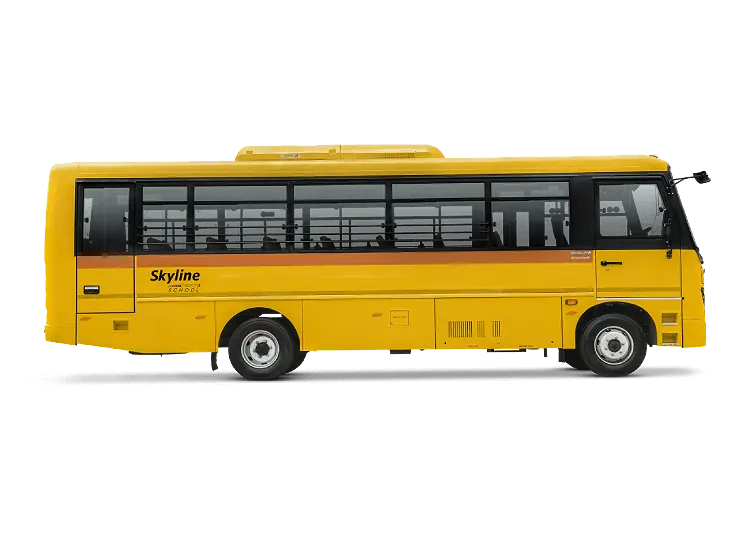

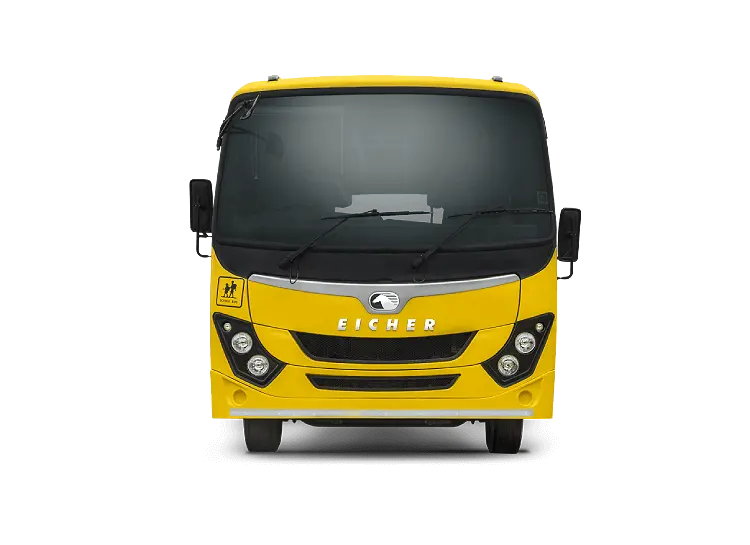

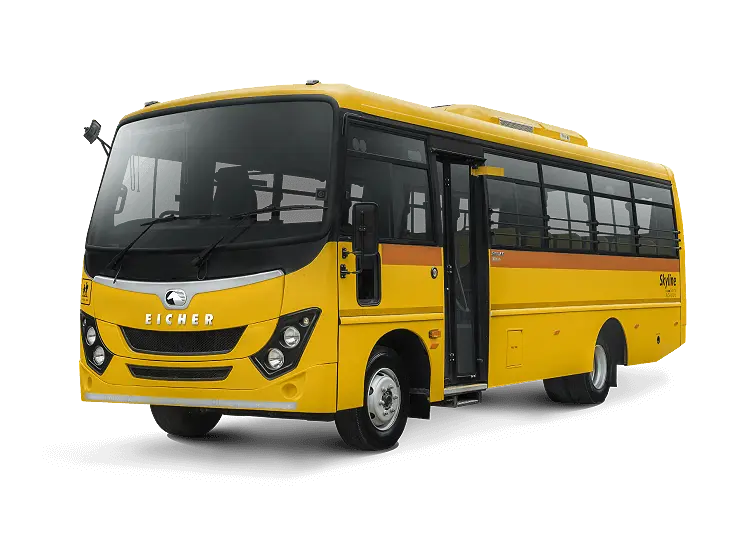

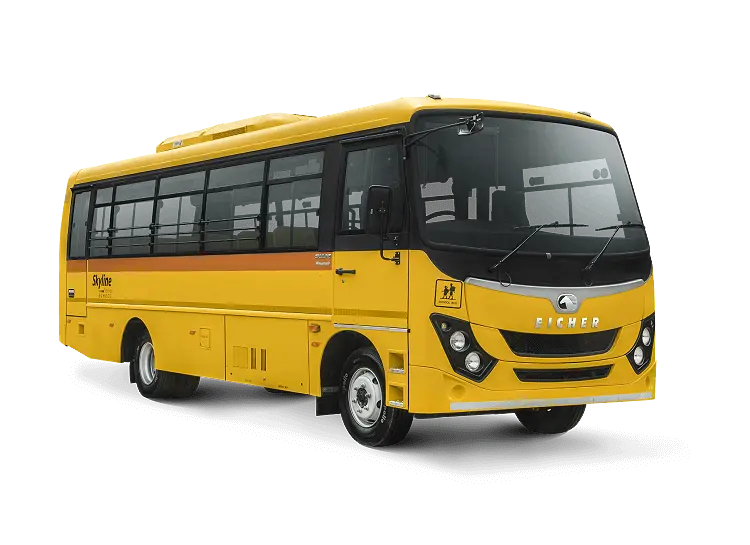

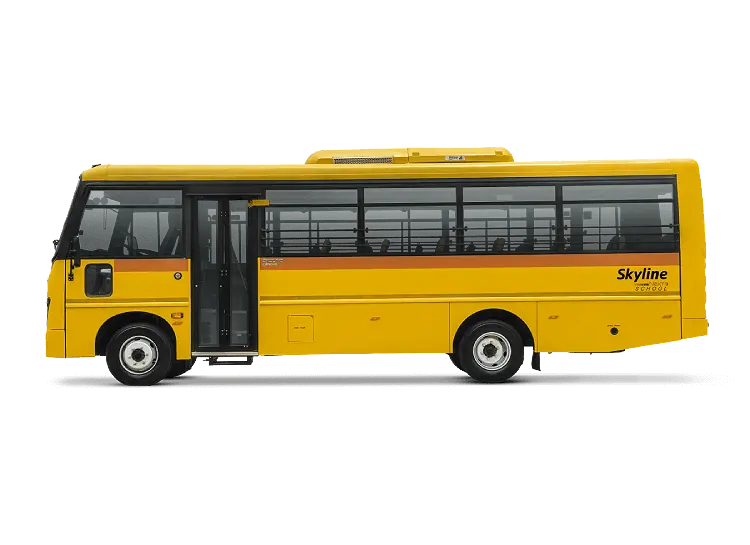

Style meets safety in the Eicher Skyline 2075 H AC school bus. This 2350 mm wide bus body has eye-catching aesthetics and comes loaded with features like silent & grease-free parabolic suspension and radial tubeless tires. With cutting-edge E474 engine at its heart to provide unmatched performance, it delivers best-in-class fuel efficiency and lower maintenance cost, leading to high profitability.
| SPECIFICATIONS | 2075 H AC |
|---|---|
| Seating Capacity | 41+1+D (3X2) |
| Wheelbase | 4320 mm |
| Overall Length | 8112 mm |
| Overall Width | 2350 mm |
| Overall Height | 2975 mm |
| Min Ground Clearance | 187 mm |
| Front Overhang | 1200 mm |
| Rear Overhang | 2592 mm |
| Turning Circle Diameter | 16 m |
| Engine Make | E474 |
| Displacement (cc) | 2960 |
| Power | 105kW @ 3200 Rpm |
| Torque | 400Nm @ 1200-2500 Rpm |
| Clutch | 310 mm |
| Transmission Make | ET35S5 |
| Transmission Type | synchromesh (5 Speed,1 Rev) |
| GVW | 8.4 t |
| Chassis Type | Domex 650 |
| Chassis C frame dimensions | 200x65x5 mm |
| Fuel Tank Capacity | 100 litres |
| Brakes | Dual Circuit 'S' Cam Full Air brakes |
| Tyres | 235/75 R17.5- 14PR (Radial Tubeless ) |
| Suspension Front | Parabolic with Anti-Roll Bar |
| Suspension Rear | Parabolic |
| Steering | Power Steering |
| Battery | 12V 130Ah |
| Alternator | 110A x 2 |
| Flooring | Vinyl |
| DEF Tank Capacity | 19 litres |
