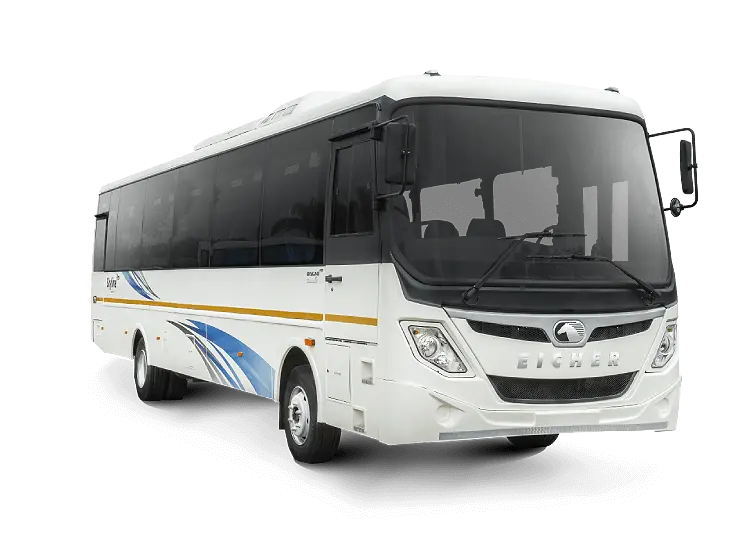

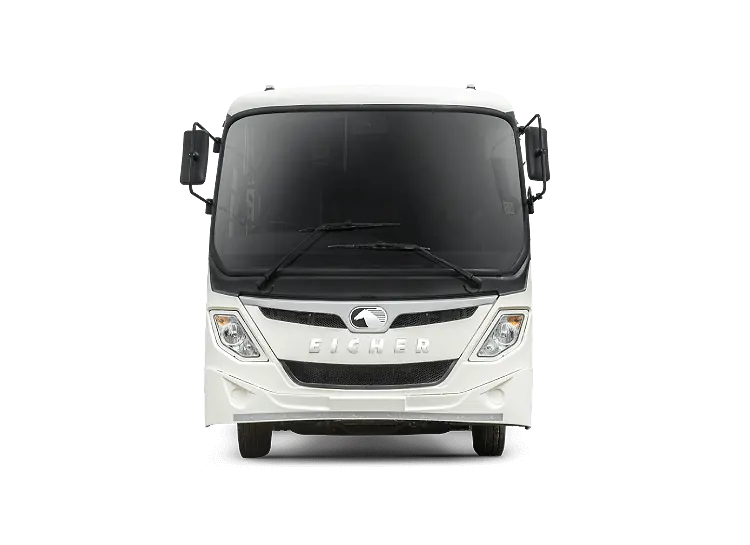

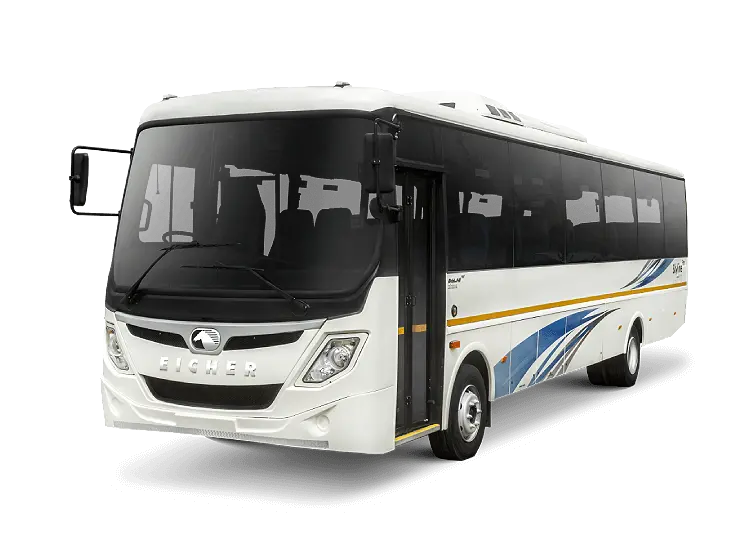

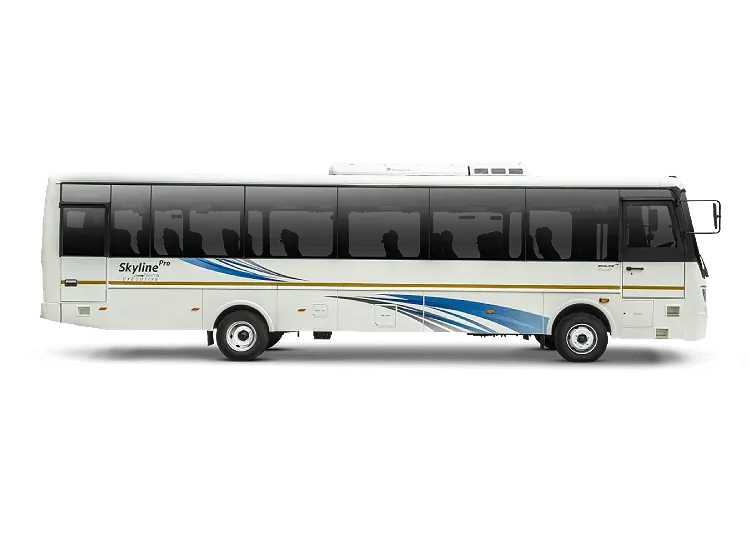

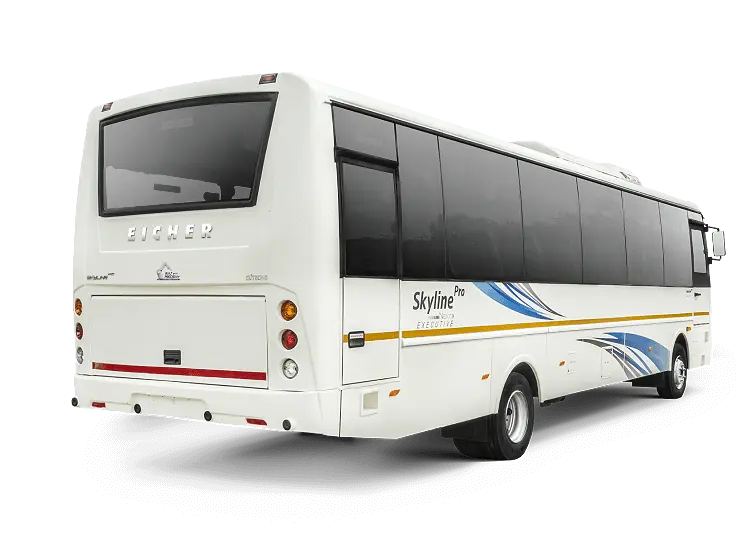

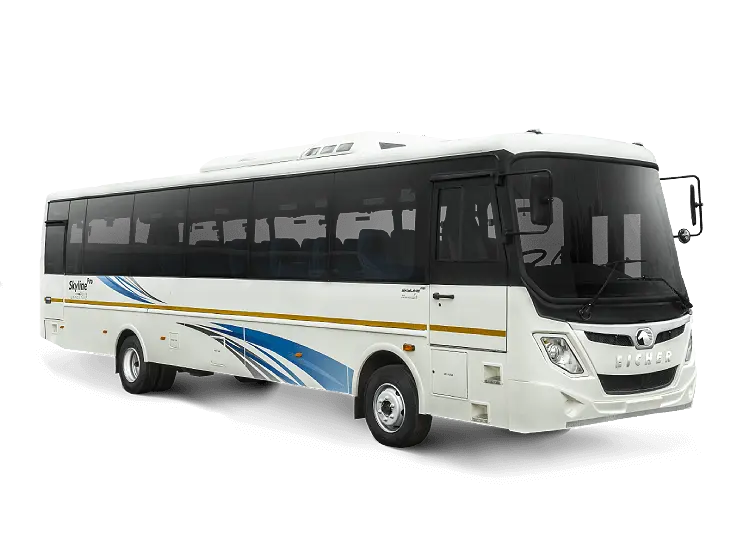

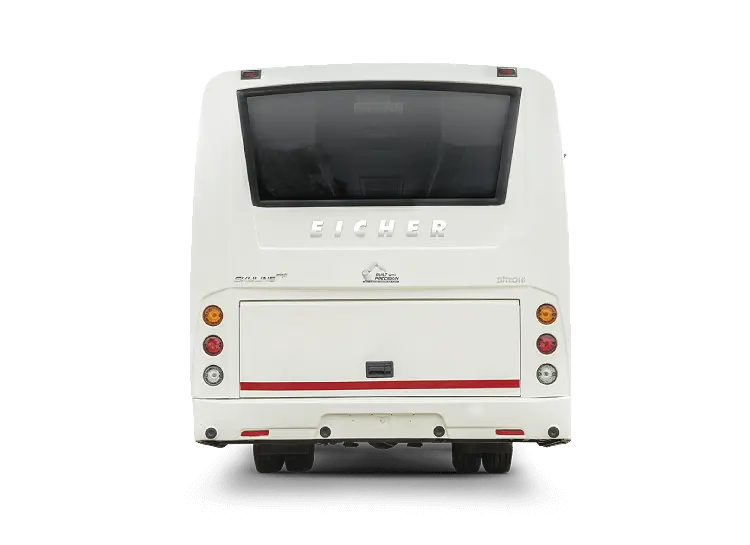

Featuring 25 to 36 spacious seats, parabolic suspension, and integrated headlights, the Skyline Pro 3009 H AC Staff bus sets a standard in its category. The new Skyline Pro is built on the reliable 3000 series platform and is designed to deliver a premium experience. It is powered by the new E494 engine, delivering an impressive 160 HP with best-in-class fuel efficiency. The factory-built AC coach, pasted tinted glass windows, LED-lit modular hat-rack, plush pushback seats, and versatile seating configurations are designed for comfortable travel.
| Specifications | Skyline Pro 3009 H AC |
|---|---|
| Seating Capacity | 36+D HHR 2X2 |
| 32+D PB 2X2 | |
| 25+D PB 2X1 | |
| Wheelbase | 4320 mm |
| Overall Length | 8957 mm |
| Overall Width | 2350 mm |
| Overall Height | 3145 mm |
| Overhang | Front : 2045 mm |
| Rear : 2592 | |
| Turning Circle Diameter | 15.2 m |
| Engine Make | E494 |
| Displacement (cc) | 3770 |
| Power | 120 kW @ 2600 Rpm |
| Torque | 500 Nm @ 1200-1800 Rpm |
| Clutch | 330 mm |
| Transmission | Make : ET40S6 |
| Type : Synchromesh (6 SPeed+1 Rev) | |
| GVW | 9.8 t |
| Chassis Type | Domex 650 |
| Chassis dimension | 210 X 76 X 6 mm |
| Fuel Tank Capacity | 100 litres |
| Brakes | Dual Circuit 'S' Cam Full Air brakes |
| Tyres | 235/75 R17.5-14PR Tubeless |
| Suspension | Front : Parabolic with ARB |
| Rear : Parabolic | |
| Steering | Power steering |
| Battery | 2 x 12V 130 Ah |
| Alternator | 2 x 120 A |
| Flooring | Silicon embedded vinyl |
| DEF Tank Capacity | 27 litres |
