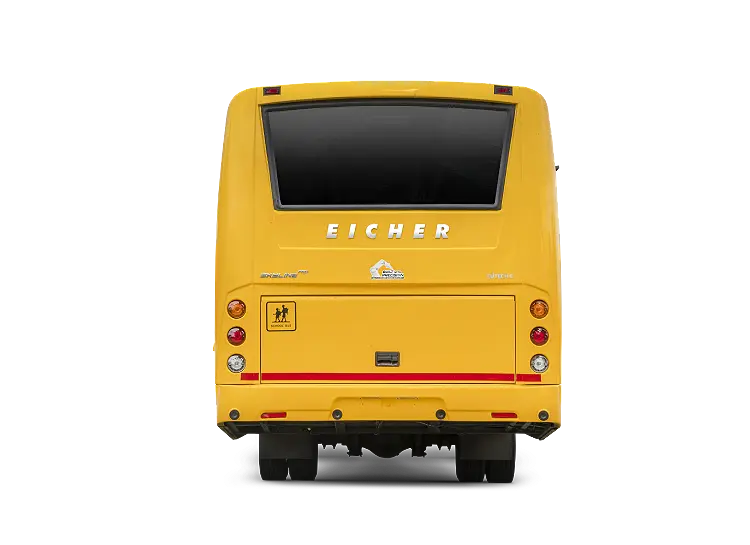

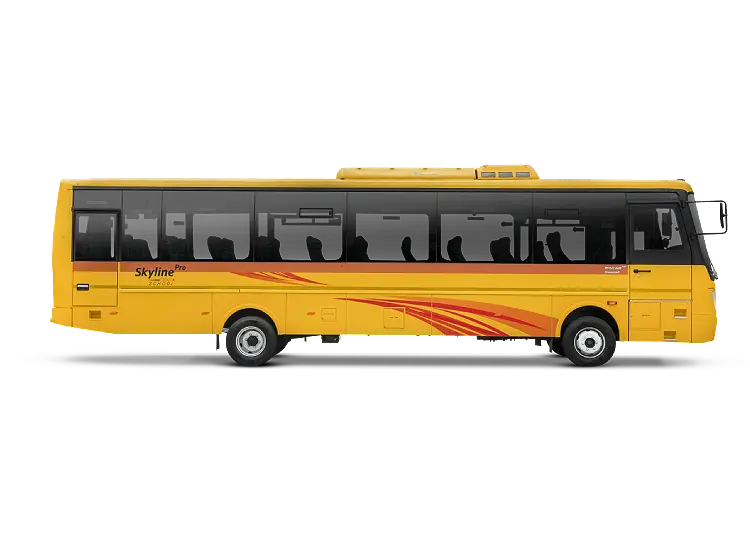

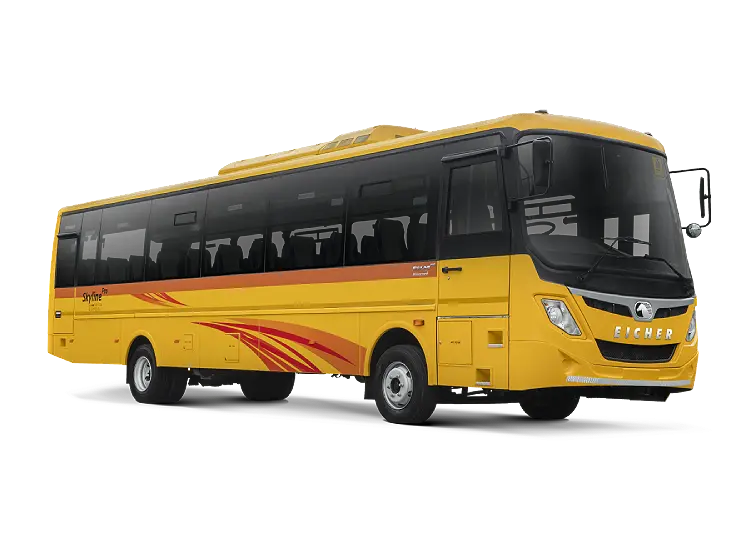

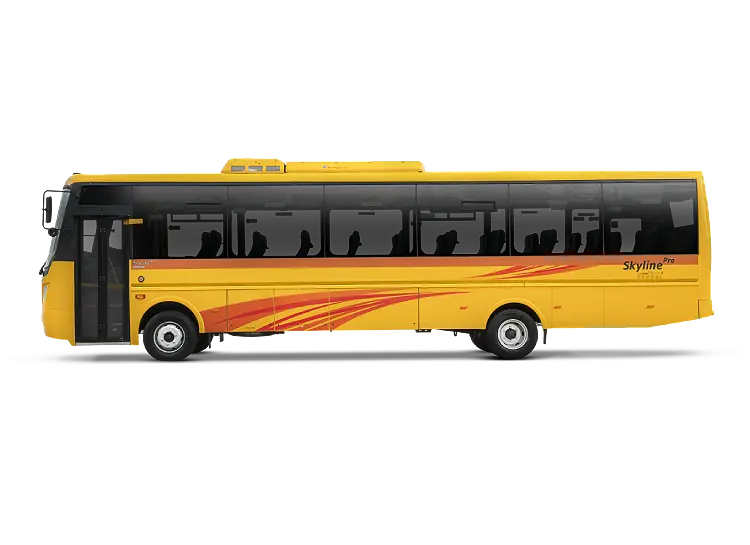

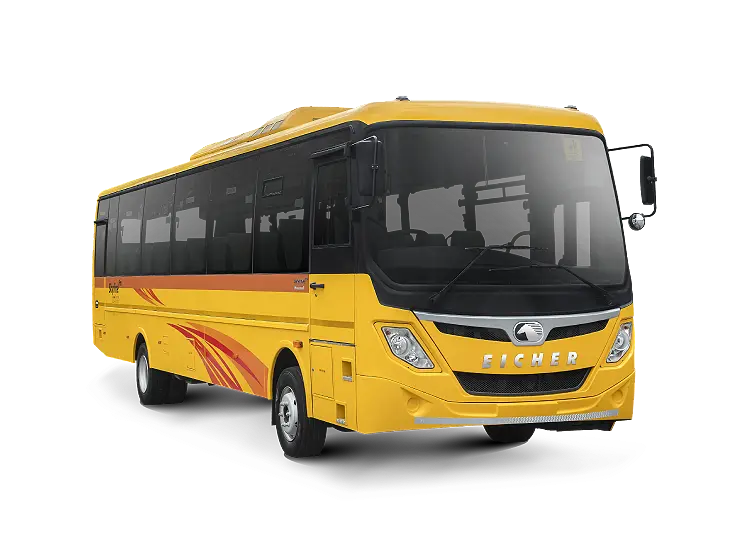

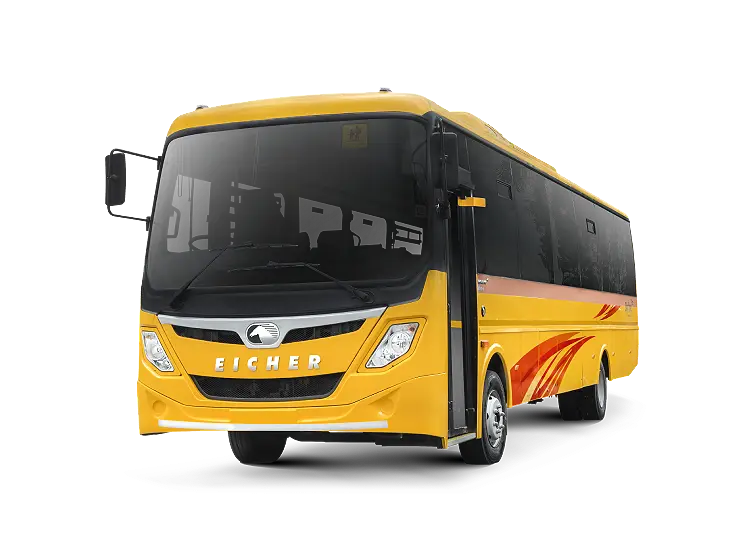

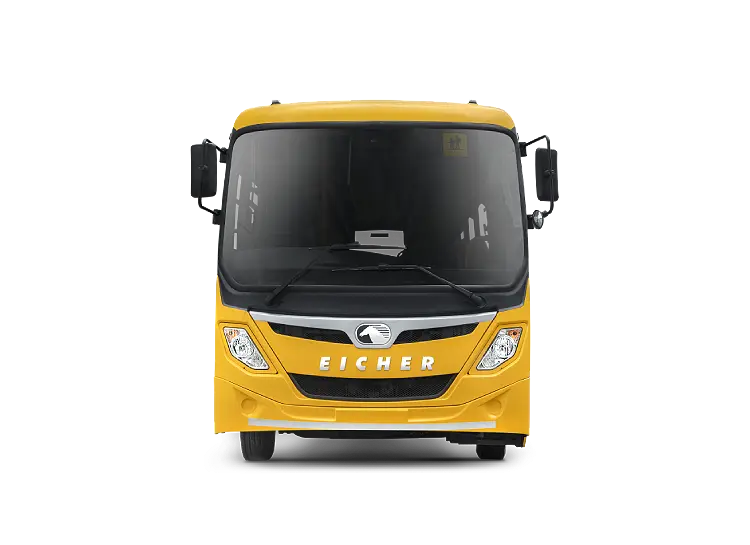

The new Skyline Pro is the premium range of Eicher School buses built on the reliable 3000 series platform. Comfort and safety are the hallmark of the Pro range. The new E494 Engine gives a definitive edge to Skyline Pro to deliver a premium journey experience every time. Industry leading safety features like FDSS, seat belts and antiroll bar ensure a cocoon of passenger safety.
| SPECIFICATIONS | PRO 3009 H AC |
|---|---|
| Seating capacity (3x2) | 52+D |
| Wheelbase | 4320 mm |
| Overall length | 8957 mm |
| Overall width | 2350 mm |
| Overall height | 3145 mm |
| Front overhang | 2045 mm |
| Rear overhang | 3134 mm |
| Turning circle diameter | 15.2 m |
| Engine | E494 |
| Displacement (cc) | 3770 |
| Power | 120 kW @ 2600 Rpm |
| Torque | 500 Nm @ 1200-1800 Rpm |
| Clutch diameter | 330 mm |
| Transmission | ET40S6 |
| Transmission type | Synchromesh (6 Speed + 1 Rev) |
| GVW | 9.8 t |
| Chassis frame | Domex® 650 |
| Chassis C frame dimensions | 210 X 76 X 6 mm |
| Fuel tank capacity | 100 litres |
| Brakes | Dual circuit 'S' cam full air brakes |
| Tyres | 235/75 R17 Tubeless |
| Suspension - front | Parabolic with anti-roll bar |
| Suspension - rear | Parabolic |
| Steering | Power steering |
| Battery | 2 x 12V 130Ah |
| Alternator | 2 x 120A |
| Floor type | Silicon embedded vinyl |
| DEF tank capacity | 27 litres |
