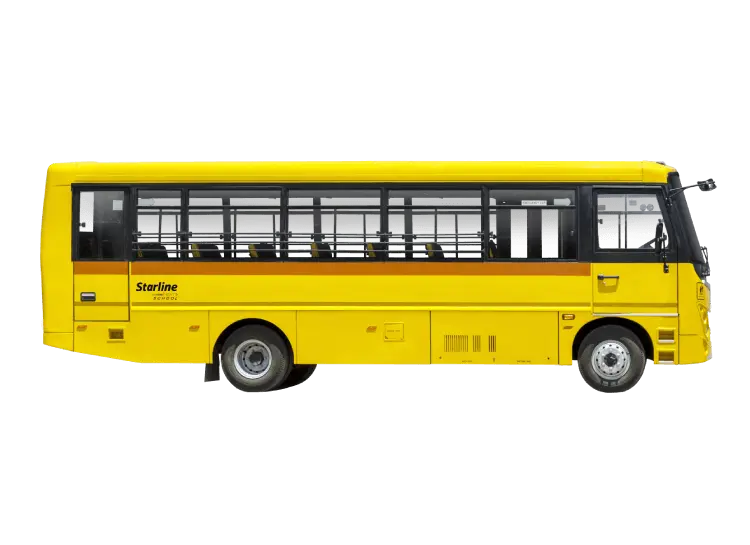

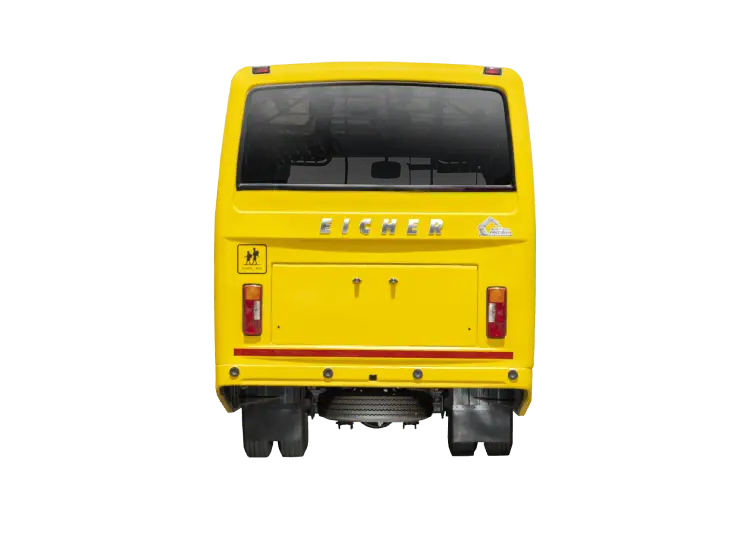

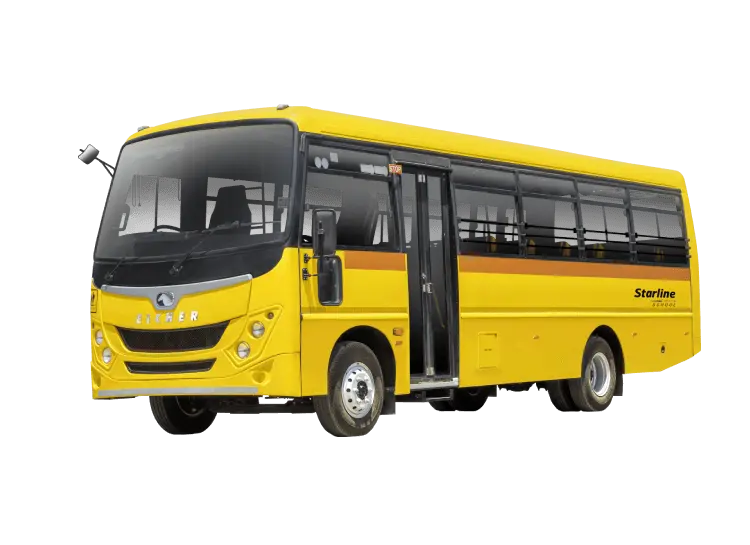

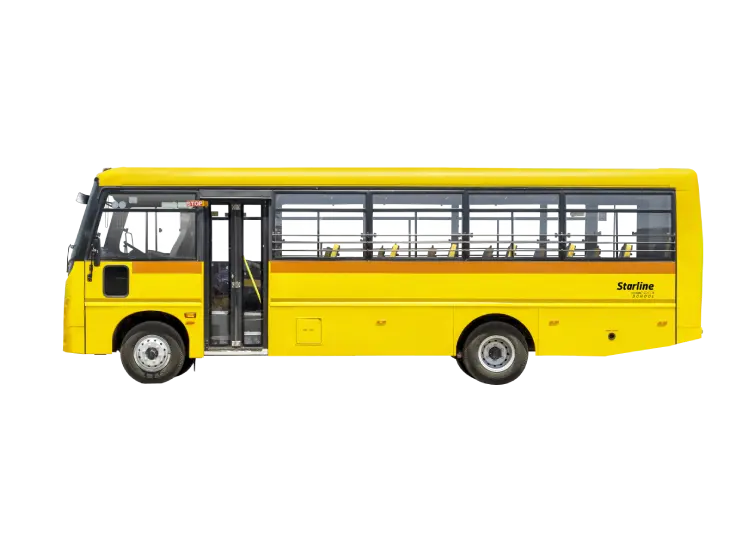

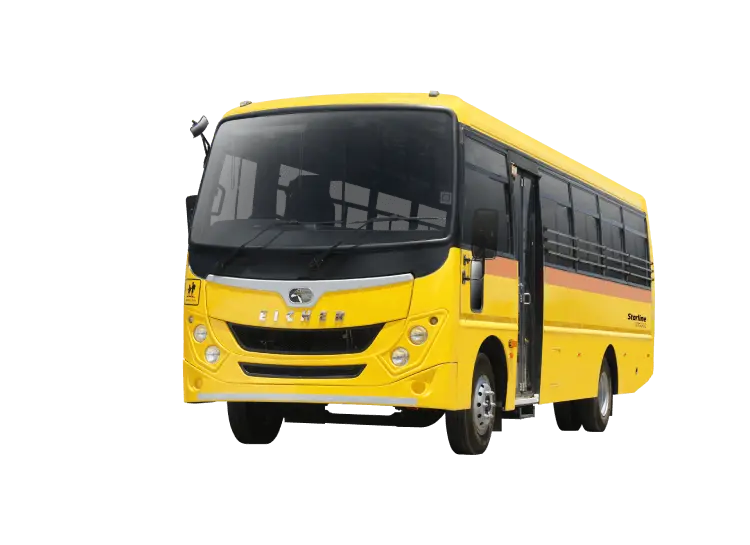

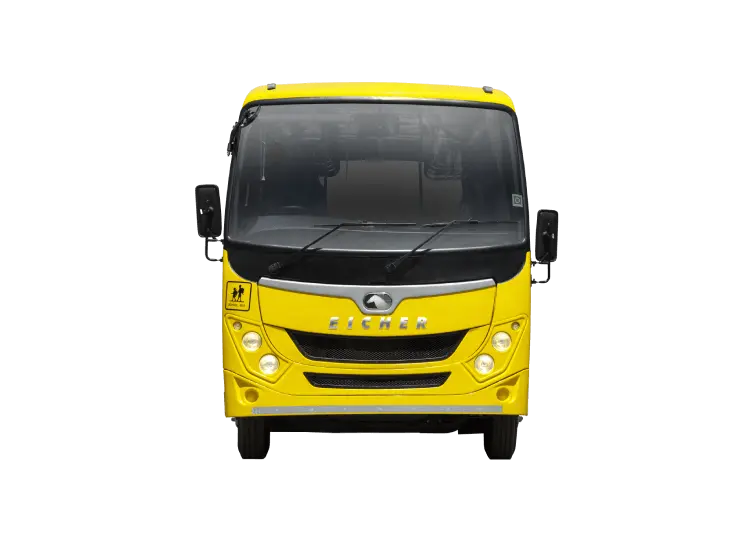

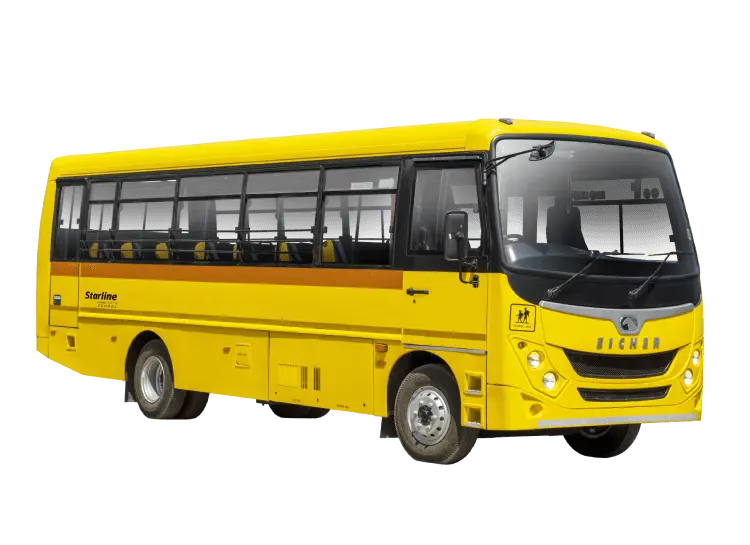

The all new Starline is designed to deliver best in class operating economics with higher safety and comfort for the young leaders. Superior fuel efficiency coupled with lower maintenance costs leads to high profitability. The modern driveline is complemented by contemporary design by way of uni-tone front Pegasus looks and refreshed interiors.
| SPECIFICATIONS | 2070 E AC |
|---|---|
| Seating Capacity 2X2 | 25+CD+D |
| Seating Capacity 3X2 | 30+CD+D |
| Wheelbase | 3515 mm |
| Overall length | 6855 mm |
| Overall width | 2164 mm |
| Overall height | 2975 mm |
| Front overhang | 1200 mm |
| Rear overhang | 2140 mm |
| Turning circle diameter | 13.1 m |
| Engine | E474 |
| Displacement (cc) | 2960 |
| Power | 105 kW @ 3200 Rpm |
| Torque | 400 Nm @ 1200 – 2500 Rpm |
| Clutch diameter | 310 mm |
| Transmission | ET35S5 |
| Transmission type | Synchromesh (5SPeed+1Rev) |
| GVW | 7.5 t |
| Chassis frame | Domex® 650 |
| Chassis C frame dimensions | 200X65X5 mm |
| Fuel tank capacity | 100 litres |
| Brakes | Dual Circuit 'S' Cam Full Air brakes |
| Tyres | 7.50 X 16 -16 PR |
| Suspension - front | Semi elliptic |
| Suspension - rear | Semi elliptic |
| Steering | Power steering |
| Battery | 12V 130Ah |
| Alternator | 2x110A |
| Floor type | Button type Vinyl |
| DEF tank capacity | 19 litres |
