The all new Starline is designed to deliver best in class operating economics with higher level of comfort and performance. Superior fuel efficiency coupled with lower maintenance costs leads to high profitability. BSVI Starline CNG Staff is powered by advanced new E483 TCIC engine which provides powerful performance. The modern driveline is complemented by contemporary design and refreshed interiors.
| SPECIFICATIONS | Starline 2070 E CNG AC |
|---|---|
| Seating Capacity (HHR) | 23+1+D HHR |
| Wheelbase | 3515 mm |
| Overall Length | 6704 mm |
| Overall Width | 2160 mm |
| Overall Height | 2970 mm |
| Front Overhang | 1080 mm |
| Rear Overhang | 2109 mm |
| Engine Make | E483 TCIC |
| Displacement (cc) | 3298 |
| Power | 85 kW @ 2600 Rpm |
| Torque | 360 Nm @ 1600-2000 Rpm |
| Clutch | 310 mm |
| Transmission Make | ET35S5 |
| Transmission Type | Synchromesh (5 Speed + 1 rev) |
| GVW | 7.6 t |
| Chassis Type | Ladder - Joggle type |
| Chassis dimension | 210X65X6 mm |

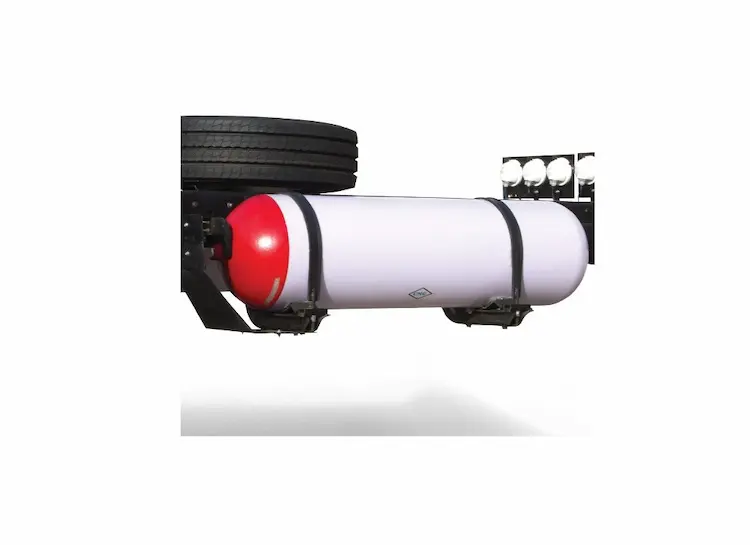

| Cylinder Capacity | 320 litres |
| Brakes | Dual Circuit 'S' Cam Full Air brakes |
| Tyres | 7.50 X 16 -16 PR |
| Suspension Front | Semi elliptic |
| Suspension Rear | Semi elliptic |
| Steering | Power steering |
| Battery | 12 V, 130 Ah |
| Alternator | 2 x 110 A |
| Floor Type | Button vinyl |
