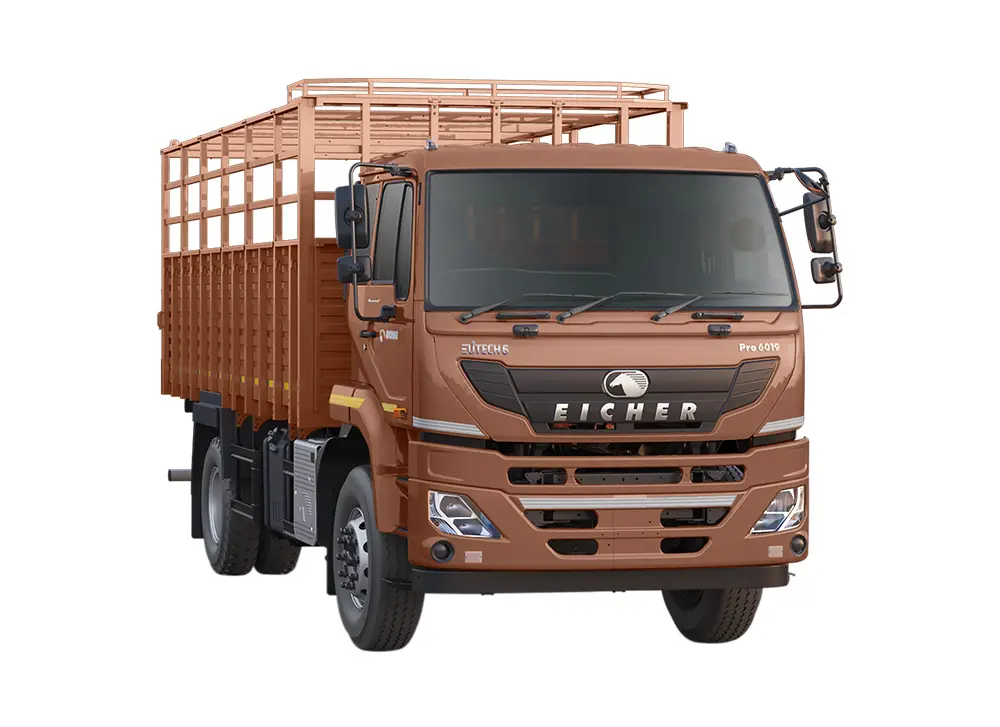

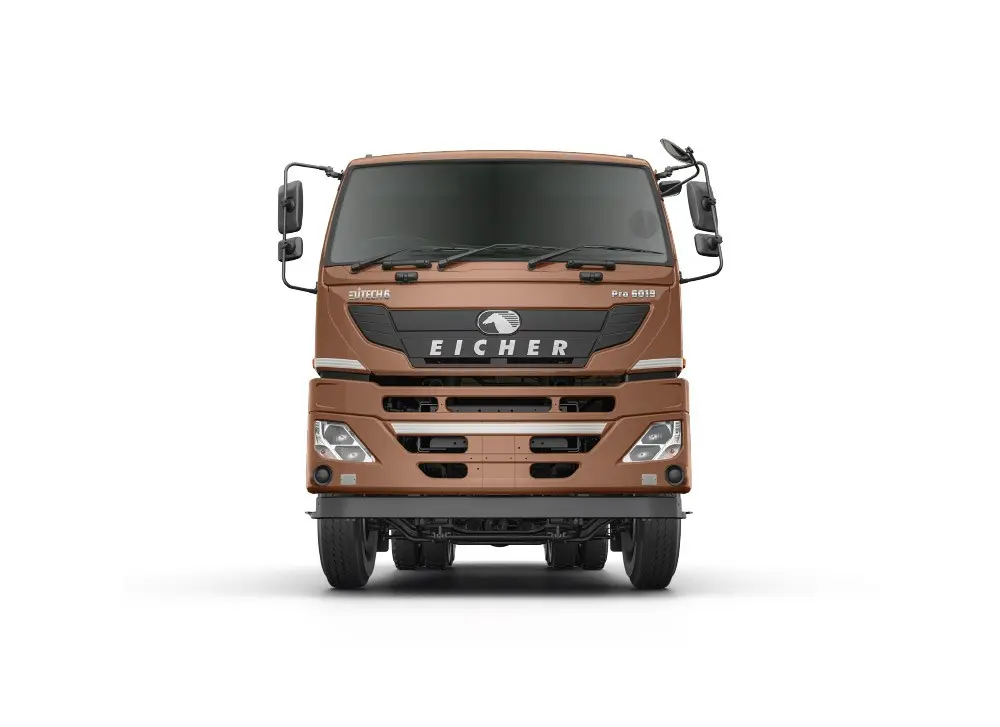

Eicher Pro 6019 is designed to deliver best-in-class fuel efficiency. This 6 tyre 18.5-ton GVW rigid haulage truck is driven by the renowned VEDX5 engine, providing the best power and torque combination in its segment and making it Profitable For Life.
| Specifications | Pro 6019 | |||||
|---|---|---|---|---|---|---|
| GVW | 18500 kg | |||||
| Engine Model | VEDX5, 4 Cylinder - BSVI | |||||
| Max Power | 154.5 kW@ 2200 Rpm | |||||
| Max Torque | 825 Nm @ 1200-1600 Rpm | |||||
| Clutch | 395 mm | |||||
| Gearbox | ET90S6 , Manual | |||||
| Rear Axle | Heavy Duty fully floating single reduction, 440 mm drive head | |||||
| FDR | 4.3 | |||||

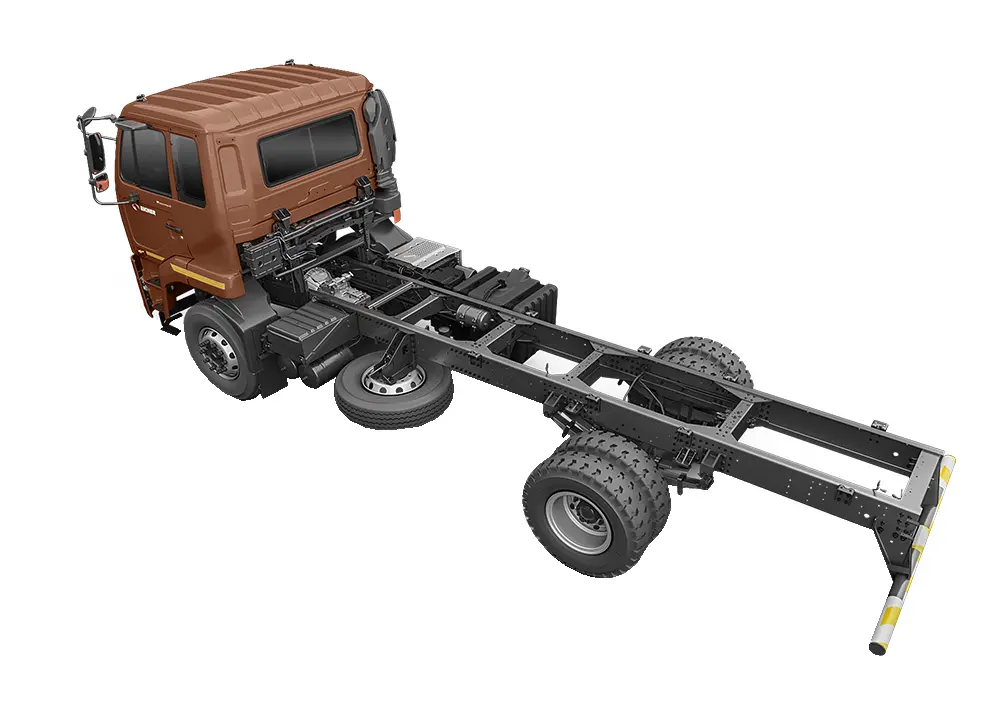

| Chassis Dimensions | 285 X 76 X 6 mm | |||||
| Brakes | Dual circuit full air āSā Cam with ABS | |||||
| Front Suspension | Parabolic | |||||
| Rear Suspension | Semi Elliptic | |||||
| Cabin | Sleeper Cabin | |||||
| Steering | Tilt and telescopic Power Steering | |||||
| Ground Clearance | 220 mm | |||||
| Tyres | Front: 295/90R20 | |||||
| Rear : 10R20 | ||||||
| Fuel Tank | 350 litres | |||||
| DEF Tank (L) | 50 | |||||
| Battery (V) | 24 | |||||
| Gradeability (%) | 30 | |||||
| Wheelbase | 4300 mm | 4800 mm | ||||
| Variants | CBC | CWC | HSD | CBC | CWC | HSD |
| Loadbody Span | 5462 mm | 5890 mm | 5506 mm | 6072 mm | 6500 mm | 6111 mm |
| Applications | City civic, Construction material, Truck mounted crane | |||||
