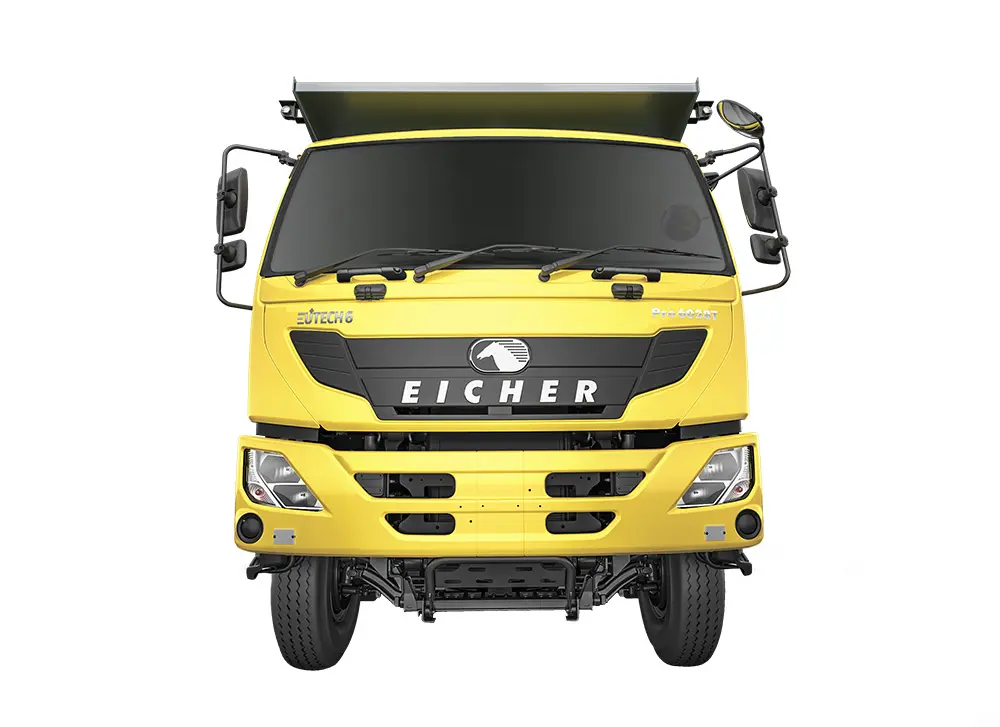

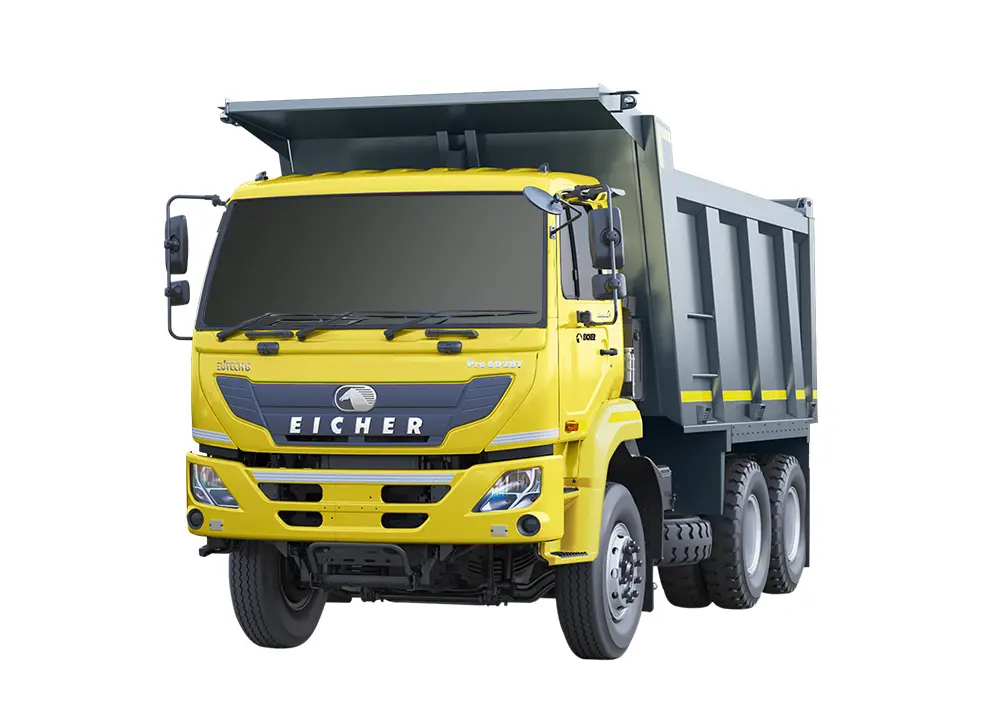

This 28-ton GVW tipper boasts of an engine power of 260HP and a maximum torque output of 1000 Nm. Adhering to our philosophy of ‘Do More', this Tipper offers unmatched performance, higher reliability, and superior productivity.
| SPECIFICATIONS | Pro 6028T |
|---|---|
| GVW | 28000 kg |
| Engine Model | VEDX8, BS-VI |
| Max Power | 191 kW @ 2200 Rpm |
| Max Torque | 1000Nm@ 1000-1700 Rpm |
| Clutch Type & Diameter | 430 mm, Pull Type, Single Dry Plate |
| Gearbox | ET 140S9, 9 speed |
| Front Axle | Forged Reverse Elliot Type |
| Rear Axle | VECV 440DH Single Reduction Tandem Fully Floating Banjo |
| Rear Axle Ratio | 5.29 |
| Differential lock | Inter-axle lock |

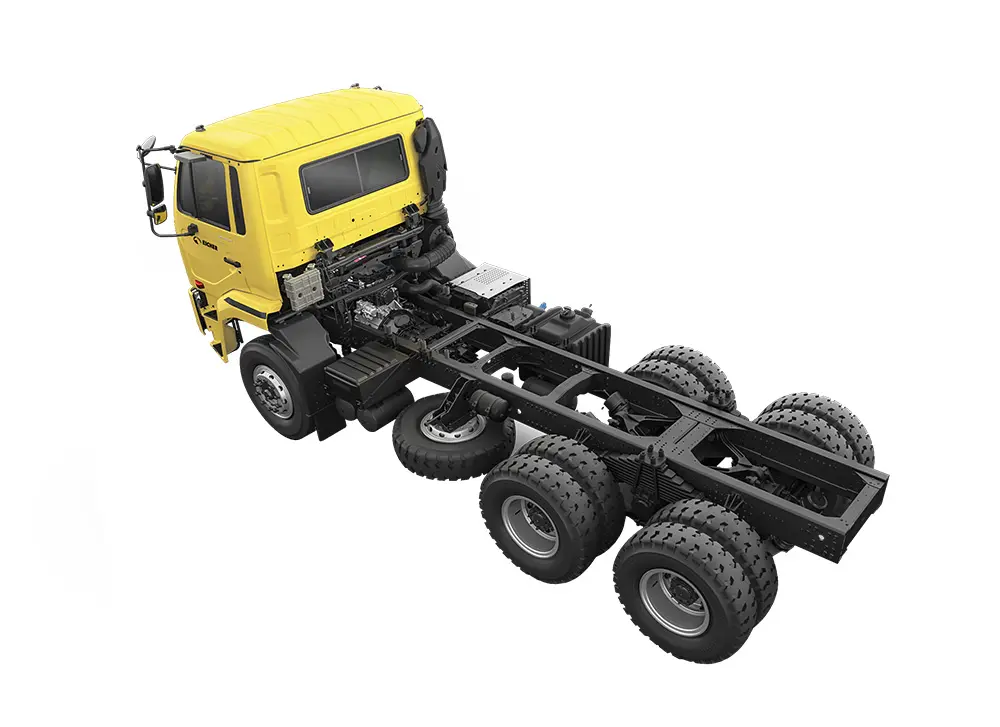

| Chassis dimension | 300 x 90 x 8 mm with 5 Full length inner liner |
| Front suspension | Parabolic |
| Rear suspension | Bogie |
| Service brake | S-Cam Dual line with ABS |
| Parking brake | Pnuematically operated hand control valve |
| Wheel Rims | 7.5 x 20 Nylon / Mining 8.0 x 20 Radial |
| Tyres | 11x20 (Nylon, Mining, Radial) |
| Steering Type | Tilt and Telescopic Power steering |
| Cabin | HVAC Day Cabin |
| Fuel Tank | 220 litres |
| DEF Tank | 33 litres |
| Electricals & Battery | 24V; 120AH |
| Wheel base | 4000 / 4585 mm |
| Minimum Ground Clearance | 255 mm |
| Turning Circle Diameter | 14.3 m 16.3 m |
| Gradeability | 52% - Crawler Gear |
| Body Variants | 14 Cum (Rock) 16 Cum (Box) 20 Cum (Box) |
| Standard Features | Eicher Live, Fuel Coaching, Cruise Control, MBooster+ |
