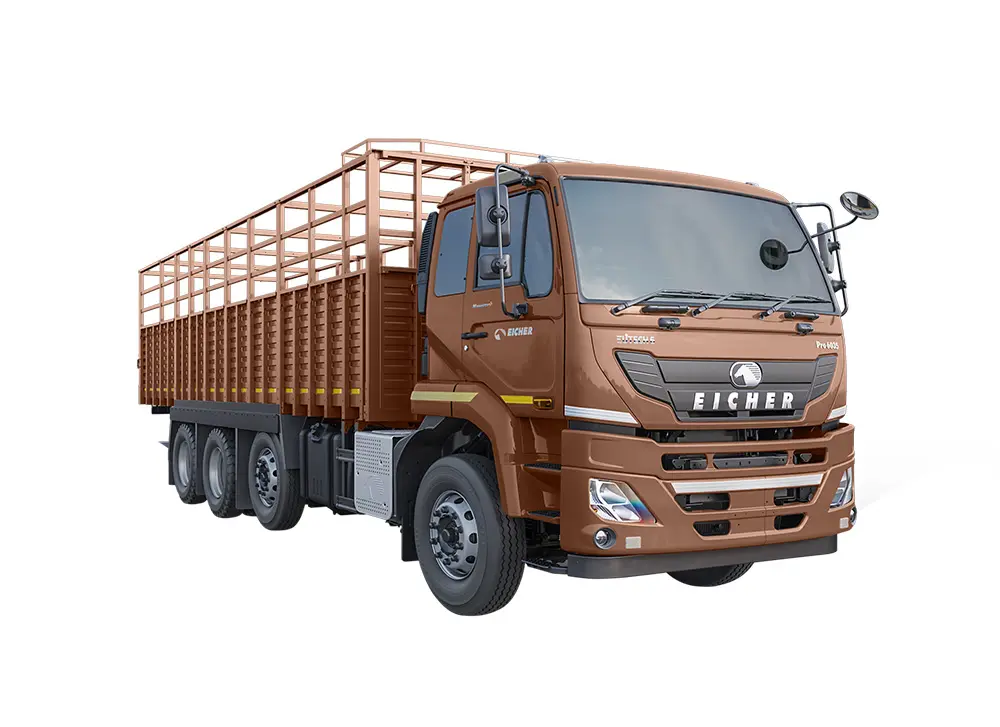

The Eicher Pro 6035 is a 12 tyre 35-ton rigid haulage truck that is driven by the renowned VEDX5 engine. It provides the most impressive combination of power and torque in the segment, so you can reap the rewards of its best-in-class fuel efficiency, maximum payload capacity, and optimised performance.
| SPECIFICATIONS | Pro 6035 | |||
|---|---|---|---|---|
| GVW | 35000 kg | |||
| Engine Model | VEDX5, 4 Cylinder - BSVI | |||
| Max Power | 176.5 kW @ 2200 Rpm | |||
| Max Torque | 900Nm @ 1200-1600 Rpm | |||
| Clutch Diameter | 395 mm | |||
| Gearbox | ET90S6 , Manual | |||
| Rear Axle | Heavy Duty fully floating single reduction, 458 mm drive head | |||
| FDR | 5.28 | |||
| Chassis Dimensions | 300X76X6 mm | |||
| Brakes | Dual circuit full air āSā Cam with ABS | |||
| Front Suspension | Parabolic | |||
| Rear Suspension | Semi elliptic Slipper | |||
| Cabin | Sleeper Cabin | |||
| Steering | Tilt and telescopic Power Steering | |||
| Ground Clearance | 235 mm | |||
| Tyres | Front: 295/90R20 | |||
| Rear : 10R20 | ||||
| Fuel Tank | 350 litres | |||
| DEF Tank | 50 litres | |||
| Battery (V) | 24 | |||
| Gradeability (%) | 18 | |||
| Wheelbase | 5800 mm | 6800 mm | ||
| Variants | CBC | HSD/FSD | CBC | HSD |
| Load body Span | 7917 mm | 7946/7851 mm | 8822 mm | 8866 mm |
| 9422 mm | ||||
| Applications | Market load, Tankers, Parcel & logistics, Cement, Fly ash, Minerals surface transportation, Container, Reefer | |||
