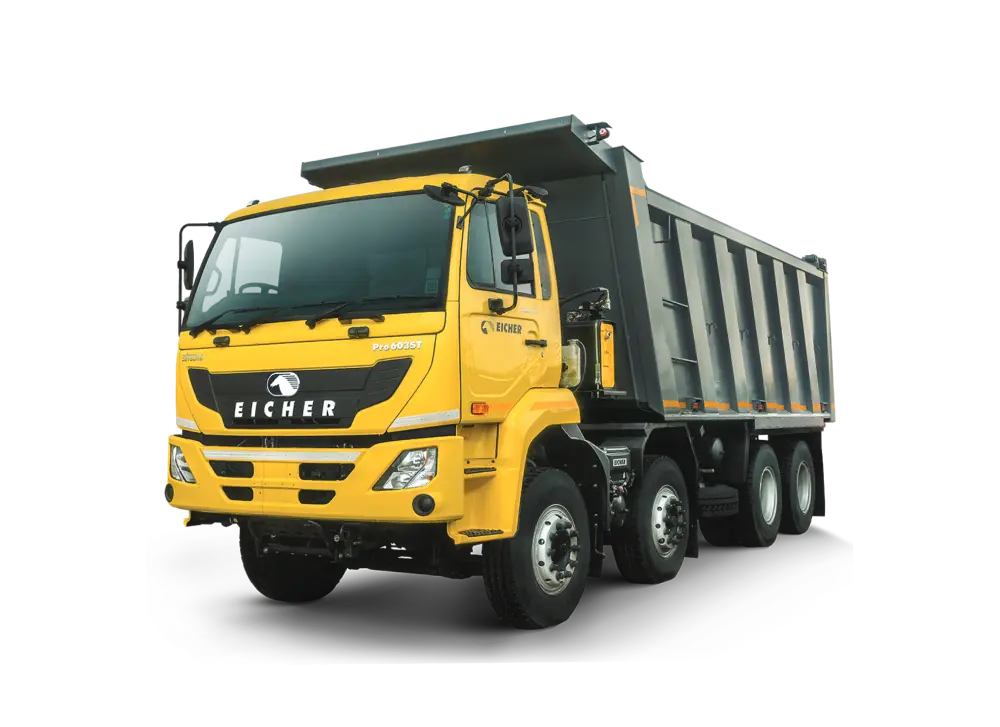

The new Eicher Pro 6035T (HRT) is the next generation 35tonne GVW Tipper. Built on philosophy to DO MORE. The tipper is designed to deliver superior performance, higher productivity, uptime and greater revenues with increased power & torque, multi options to suit various business need and applications now comes with Hub Reduction Tandem Axle (HRT).
| SPECIFICATIONS | Pro 6035T HRT |
|---|---|
| Model | Pro 6035T HRT BSVI |
| Engine Model | VEDX8, 7.7L |
| Max. Power | 194 kW @ 2200rpm |
| Max. Torque | 1000Nm @ 1100-1700rpm |
| Clutch Diameter(mm) | 430 |
| Gearbox | ET1409S |
| Front Axle | Forged Reverse Elliot Type with Anti Roll Bar |
| Rear Axle | Heavy-Duty Hub Reduction Tandem Axle with Anti Roll Bar |
| Chassis Dimensions | 300x90x8mm, with 5mm full length inner liner |
| Service Brake | S-cam Dual line with ABS |
| Parking Brake | Pneumatically operated hand control valve |
| Front Suspension | Parabolic |
| Rear Suspension | Bogie |
| Cabin Type | Day cabin with HVAC & Air suspended Driver Seat |
| Steering | Tilt and Telescopic Power Steering |
| Tires | 11x20 (Nylon, Mining, Radial) |
| Fuel Tank (lts.) | 315 |
| DEF Tank (lts.) | 50 |
| Battery | 24V:120Ah |
| Wheelbase (mm) | 5285 |
| Turning Circle Diameter (m) | 18.6 |
| Gradeability (%) | 41% |
| GC (mm) | 290 |
| Body Options | CBC, 20 & 23 BB |
| Standard Features | My Eicher, Fuel Coaching, Cruise Control, MBooster+, Onboard Diagnostics |
