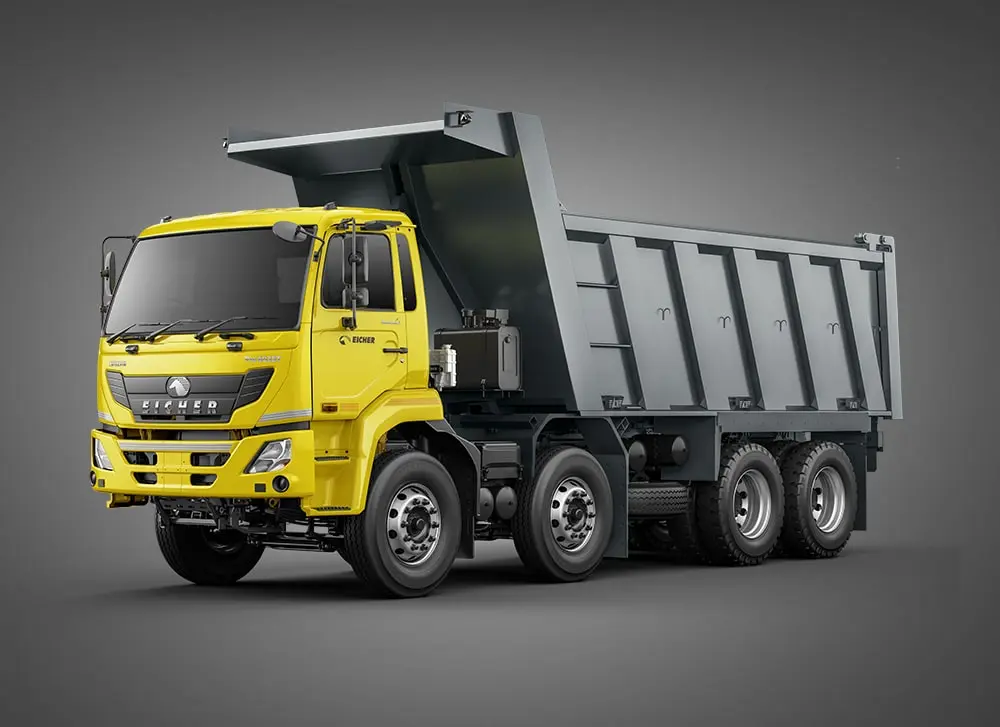

Give your heavy-duty tasks the power of our next-generation 35-ton GVW Tipper. With an impressive power of 260HP and a sturdy torque output of 1000Nm, it is set to redefine your business’ revenue with its outstanding performance, unmatched reliability, and higher productivity.
| Model | Eicher Pro 6035T | |||||
|---|---|---|---|---|---|---|
| GVW | 35000 kg | |||||
| Engine | VEDX8 BS-VI | |||||
| Max Power | 191 kW @ 2200 Rpm | |||||
| Max Torque | 1000 Nm @ 1100-1700 Rpm | |||||
| Clutch Type & Diameter | 430 mm, pull type, Single dry plate | |||||
| Gearbox | ET 140S9, 9 speed | |||||
| Front Axle | Forged I-beam Reverse Elliot type axle with stabilizer bar | |||||
| Rear Axle | VECV 440DH Single Reduction Tandem Fully Floating Banjo | |||||
| Rear Axle Ratio | 5.29 | |||||
| Differential lock | Inter-axle | |||||
| Chassis dimension | 300 x 90 x 8 mm with 5 Full length inner liner | |||||
| Front suspension | Parabolic | |||||
| Rear Suspension | Bogie | |||||
| Service brake | S-Cam Dual line with ABS | |||||
| Parking brake | Pneumatically operated hand control valve | |||||
| Engine Brake | Standard | |||||
| Wheel Rims | 7.5x20 (Nylon/Mining) 8.0x20 (Radial) | |||||
| Tyres | 11x20 (Nylon, Mining, Radial) | |||||
| Steering Type | Tilt and Telescopic Power steering | |||||
| Cabin | HVAC Day Cabin | |||||
| Fuel Tank | 315 litres | |||||
| DEF Tank | 50 litres | |||||
| Electricals & Battery | 24V; 120AH | |||||
| Minimum Ground Clearance | 252 mm | |||||
| Wheelbase | 5285 mm | |||||
| Body Variants | CBC, 20 CuM Box, 23 CuM Box | |||||
| Turning Circle Diameter | 18.6 m | |||||
| Gradeability (%) | 39% Crawler Gear | |||||
| Standard Features | Eicher Live, Fuel Coaching, Cruise Control, MBooster+ | |||||
