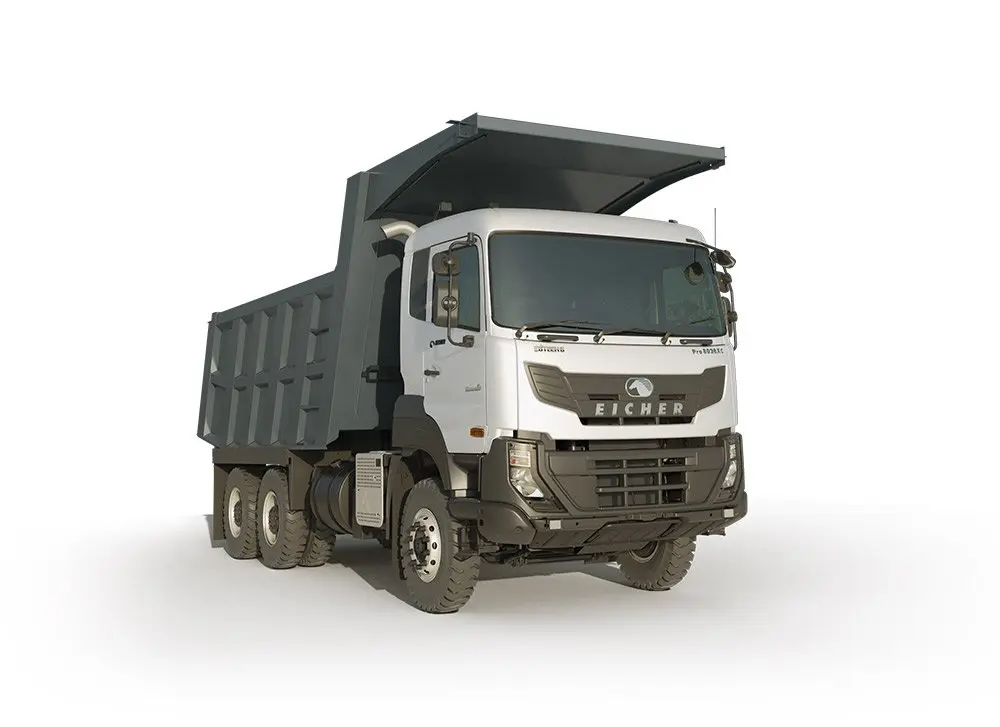

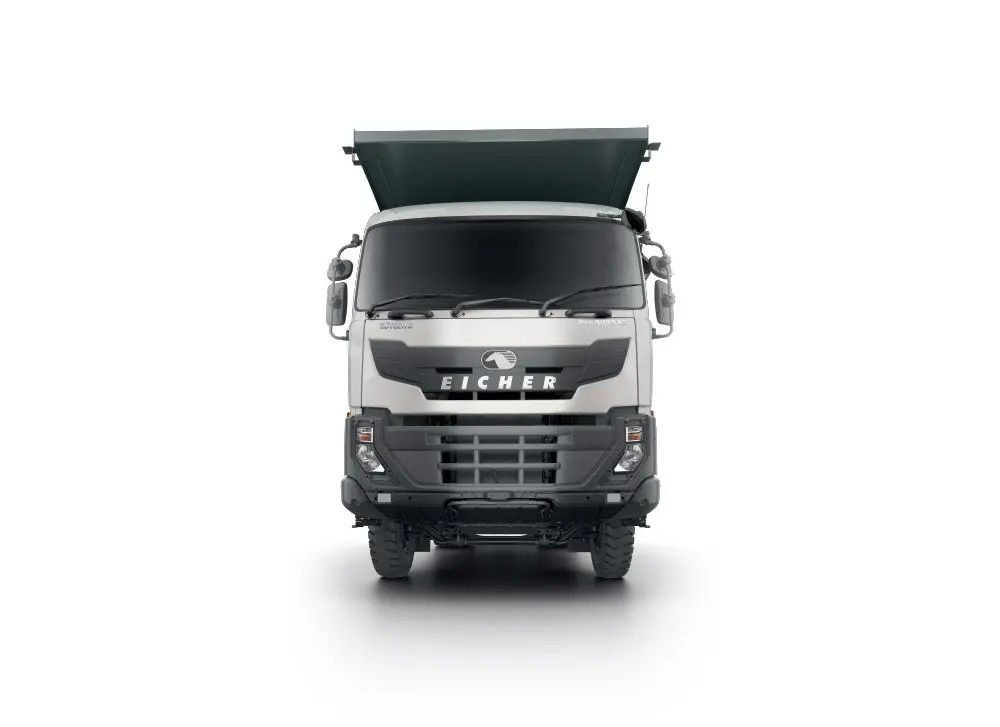

The Eicher Pro 8028XC, a heavy-duty 28-ton GVW Tipper, has been thoughtfully designed to meet the extreme requirements in demanding construction applications. Equipped with the proven VEDX8 engine and robust aggregates, it delivers an impressive power of 300HP and a torque of 1200Nm.
| Specifications | Pro 8028XC |
|---|---|
| GVW | 28000 kg |
| Engine Model | VEDX8, BS-VI |
| Max Power | 221 kW @ 2200 Rpm |
| Max Torque | 1200Nm @ 1200-1600 Rpm |
| Clutch Type & Diameter | 430mm, Pull Type, Single Dry Plate |
| Gearbox | ET140S9 - 1C + 8F + 1R |
| Front Axle | Heavy-duty forged I-beam, Reverse Elliot type axle with stabilizer bar |
| Rear Axle | Heavy Duty Single Reduction Tandem Axle |
| Rear Axle Ratio | 5.29 |
| Differential lock | Inter-axle |
| Chassis dimension | 300 x 90 x 8 mm with 5mm Full length inner liner |
| Front suspension | Parabolic |
| Rear suspension | Bogie |
| Service brake | S-Cam Dual line with ABS |
| Parking brake | Pnuematically operated hand control valve |
| Wheel Rims | 7.5 x 20 |
| Tyres | 11 x 20 (Nylon, Mining Lug) |
| Steering Type | Tilt and Telescopic Power steering |
| Cabin | AC Sleeper Cabin |
| Fuel Tank | 315 litres |
| DEF Tank | 50 litres |
| Electricals & Battery | 24V; 120AH |
| Wheel base | 4585 mm |
| Minimum Ground Clearance | 255 mm |
| Turning Circle Diameter | 16.3 m |
| Gradeability (%) | 68 - Crawler Gear |
| Body Variants | 14 Cum (Rock) |
| 16 Cum (Box) | |
| 20 Cum (Box) | |
| Standard Features | Eicher Live, Fuel Coaching, Cruise Control, M Booster+ |
