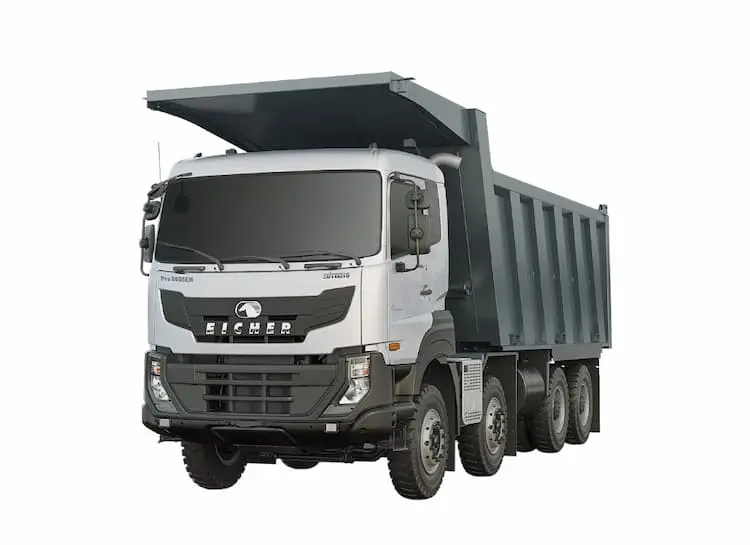

The new Eicher Pro 8035XM AMT is the next generation 35 Tonne GVW Tipper and includes Segment first ARAI Approved 19.5 U- Shaped Rock Body. The tippers are designed to deliver superior performance, higher productivity, uptime and greater revenues with increased power & Torque, and multi options to suit various business needs and applications.
| SPECIFICATIONS | Pro 8035XM AMT |
|---|---|
| Engine Model | VEDX8 |
| Max. Power | 261 kW @ 2200 rpm |
| Max. Torque | 1350Nm @ 1200-1600 rpm |
| Clutch Diameter(mm) | 430 |
| Gearbox | 9S AMT (E-Smart Shift) |
| Front Axle | Reverse elliot type |
| Rear Axle | Hub reduction with full differential lock and anti-roll bar |
| Chassis Dimensions | 300x90x8, with 5mm full length inner liner |
| Service Brake | S-Cam dual line with ABS |
| Parking Brake | Pnuematically operated hand control valve |
| Front Suspension | Parabolic |
| Rear Suspension | Bogie |
| Cabin Type | AC Sleeper Cabin with Air Suspended driver Seat |
| Steering | Tilt and telescopic power steering |
| Tires | 12x20Mining Lug |
| Fuel Tank (lts.) | 315 |
| DEF Tank (lts.) | 50 |
| Battery | 24V:120Ah |
| Wheelbase (mm) | 5285 |
| Turning Circle Diameter (m) | 21.1 |
| Gradeability (%) | 75% |
| GC (mm) | 308 |
| Body Options | CBC, 18RB, 19RB, 19.5RB, 23BB, 26 Coal Body |
| Standard Features | My Eicher, Fuel Coaching, Cruise Control, MBooster+, Onboard Diagnostics |
