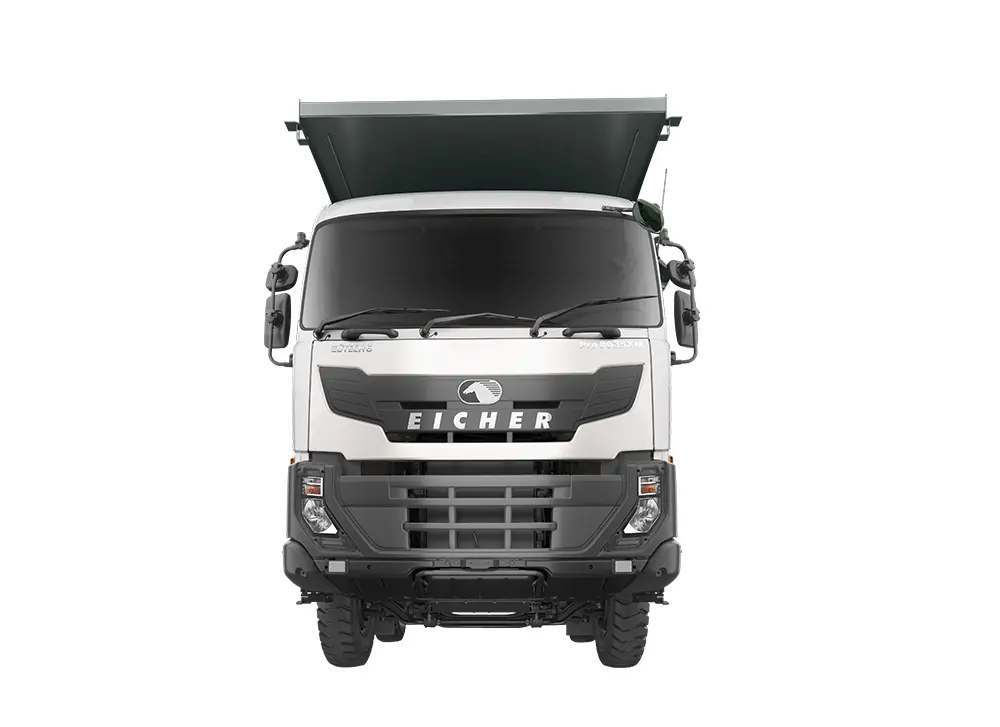

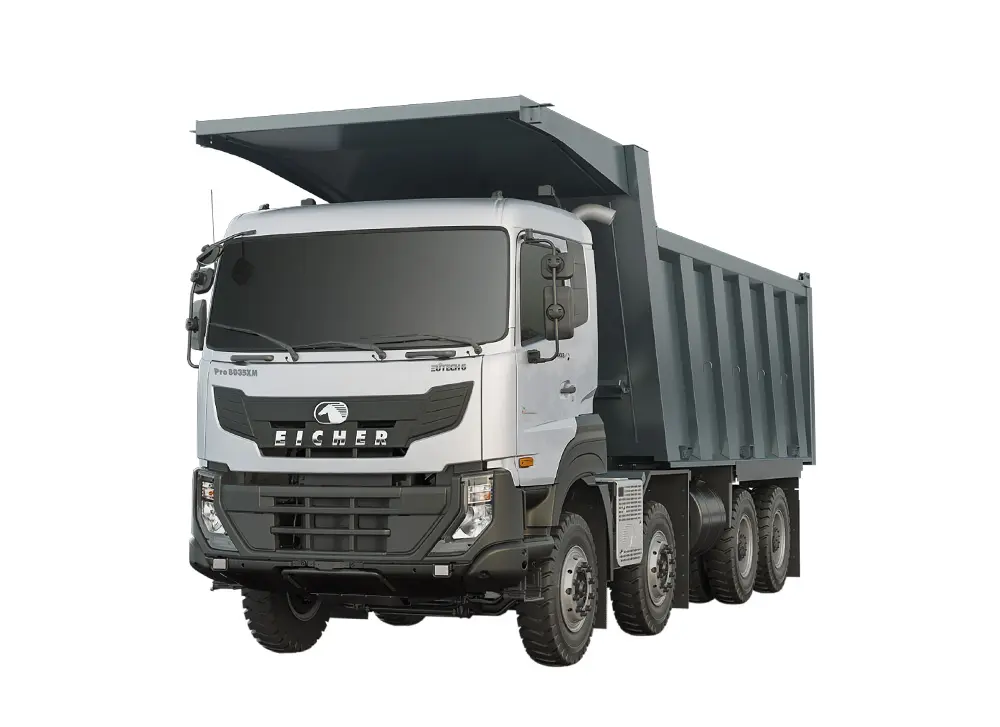

Tap into maximum productivity with this 35-ton GVW Mining Tipper. Powered by the top-notch VEDX8 engine and built with robust aggregates, it delivers a staggering 350 HP to perform in the most challenging environment. Its inherent reliability instils the confidence to truly Experience the Extreme.
| SPECIFICATIONS | Pro 8035XM |
|---|---|
| GVW | 35000 kg |
| Engine Model | VEDX8, BS-VI |
| Max Power | 258 kW @ 2200 rpm |
| Max Torque | 1350Nm @ 1200-1600 rpm |
| Clutch Type & Diameter | 430 mm, Pull Type, Single Dry Plate |
| Gearbox | ET140S9 - 1C + 8F + 1R |
| Front Axle | Heavy-duty forged I-beam Reverse Elliot type axle with stabilizer bar |
| Rear Axle | Hub reduction and two stage differential lock |
| Rear Axle Ratio | 6.37 |

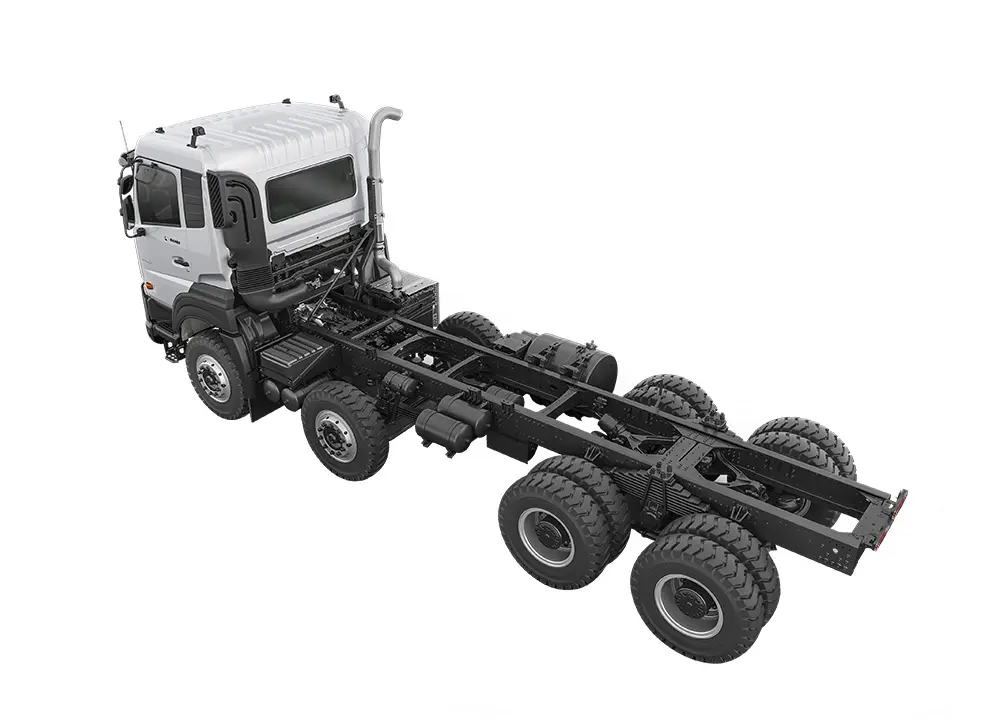

| Chassis dimension | 300x90x8 mm with 5mm Full length inner liner |
| Front suspension | Parabolic spring assembly |
| Rear suspension | Bogie |
| Service brake | S-Cam Dual line with ABS |
| Parking brake | Pnuematically operated hand control valve |
| Wheel Rims | 8.5x20 |
| Tyres | 12x20 Mining Lug |
| Steering Type | Tilt and Telescopic Power steering |
| Cabin | AC Sleeper Cabin |
| Fuel Tank | 315 litres |
| DEF Tank | 50 litres |
| Electricals & Battery | 24V; 120AH |
| Wheel base | 5285 mm |
| Minimum Ground Clearance | 308 mm |
| Turning Circle Diameter | 21.1 m |
| Gradeability (%) | 75- Crawler Gear |
| Body Variants | 16 Cum (Rock) 18 Cum (Rock) 20 Cum (Box) 23 Cum (Box) 19.5 Cum (URB) |
| Standard Features | Eicher Live, Fuel Coaching, Cruise Control, M Booster+, DGMS |
