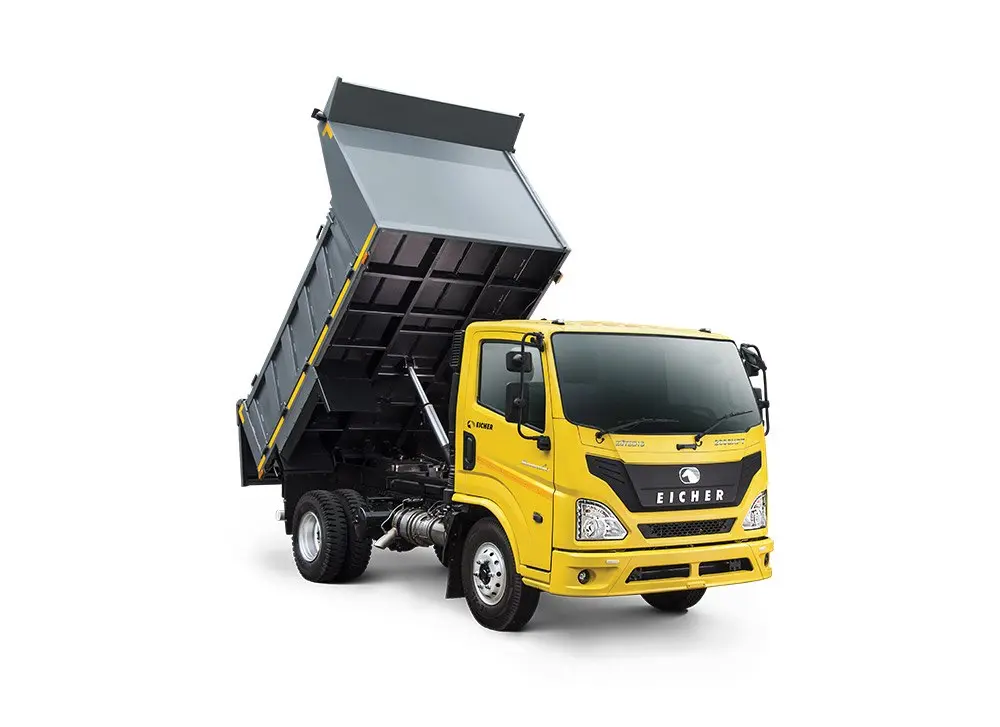

Get 140 HP engine power, higher grade-ability, and more. Pro 2080XPT, a 8.99-ton tipper, with its E474 engine delivers 140 HP. With special attention to cabin features that ensure high cabin safety and exemplary comfort, this tipper with high gradeability, is made for smoother drives across tough terrains.
| SPECIFICATIONS | Pro 2080XPT | |||
|---|---|---|---|---|
| GVW | 8990 kg | |||
| Wheelbase | 2935 mm | |||
| Body options | 4.5cum Fully Built Tipper | CBC | DSD | |
| Engine | E474 Turbocharged Intercooled CRS | |||
| Max. Power Output | 104 kW | |||
| Max. Torque Output (Nm) | 400Nm @1200-2500 rpm | |||
| Emisssion Norm | BSVI | |||
| Fuel Type | Diesel | |||
| Gearbox | Eicher 4M5G | |||
| Gear Shift | 5 Speed with hybrid gear shift lever | |||
| Clutch Dia | 310 mm | |||
| Gradeability % | 44 | |||
| Propeller shaft | Monotron (Lubrication for life) | |||
| Steering | Tilt & Telescopic, Vaccum Assisted Standard Power Steering | |||
| Turning Circle Diameter | 11 m | |||
| Ground Clearance | 195 mm | |||
| Fuel Tank | 60 litres (Anti - Corrosive Composite HDP Polymer) | |||
| Battery, AH | 12 V - 100 AH | |||
| Brakes (Exhaust) | Pneumatic Assisted , Mounted on Engine | |||
| Brakes (Service) | Air brakes (Drum) | |||
| Suspension | Grease free Semi-elliptical laminated leaves (shock absorber in front) | |||
| Tyre Size | 8.25X 16 - 16PR | |||
| Cabin | New generation 2m tilt able cabin, Pegasus family look with eagle eyes, comfortable seating with multiple utility spaces | |||
| Warranty** | 2 years unlimited km on vehicle 3 years unlimited km on engine & gearbox | |||
