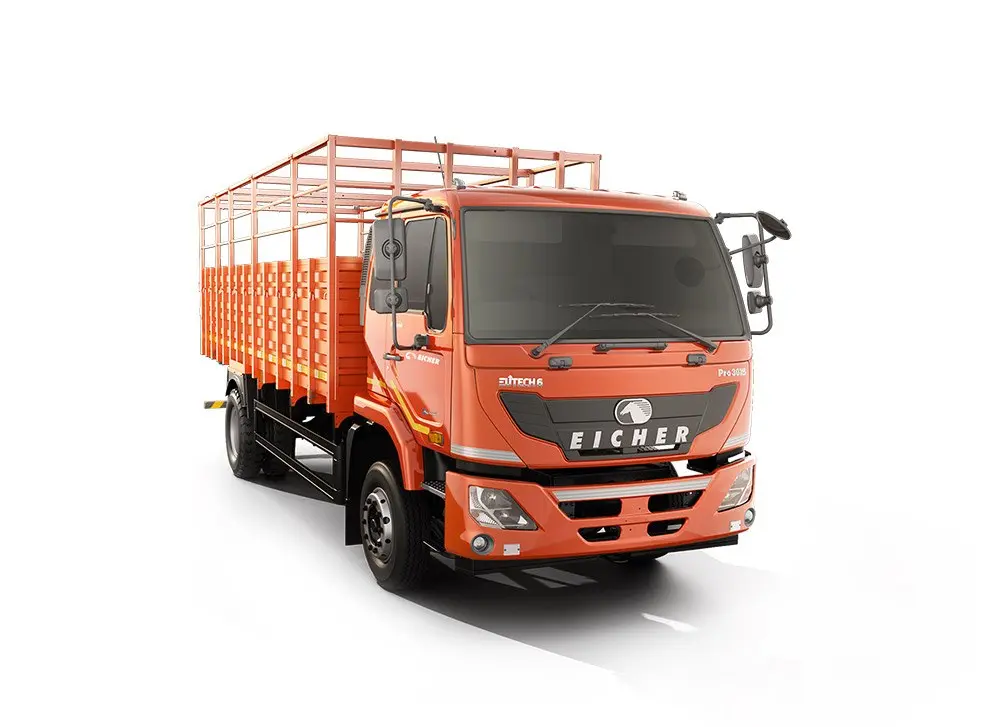

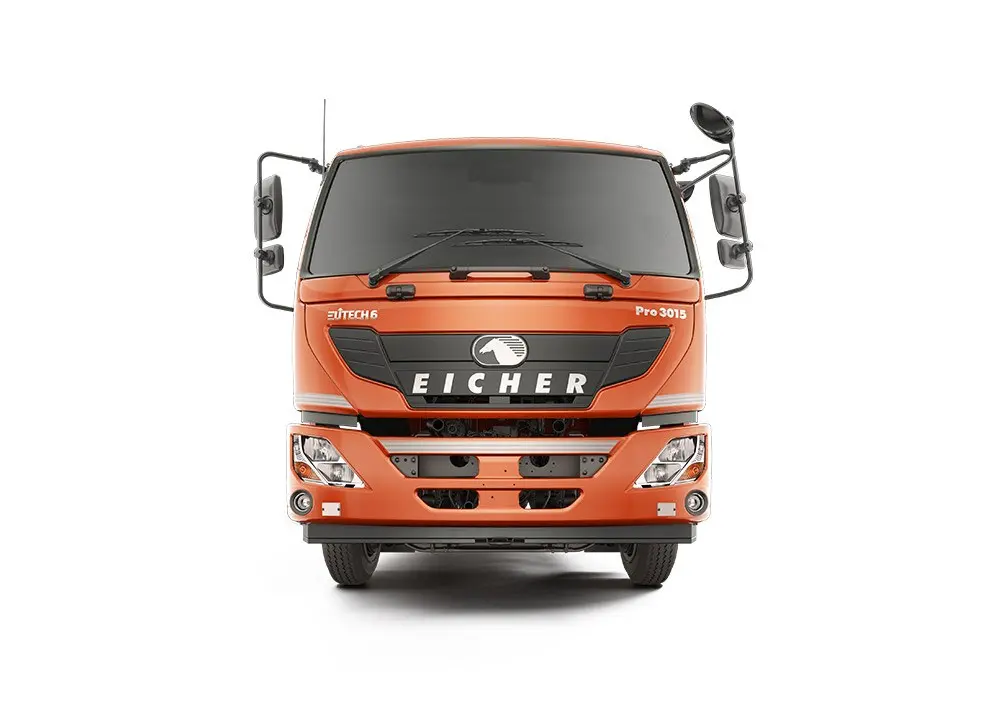

Redefining levels of performance & profitability to stay ahead in business with Eicher Pro 3015 with Next gen E494 engine & 7 speed gearbox. Its revolutionary driver comfort, cutting edge technology, best in class safety and reliability along with superior overall performance keep you “Stay Ahead”
| SPECIFICATIONS | Pro 3015 | |||
|---|---|---|---|---|
| GVW | 16371 kg | |||
| Wheelbase | 4490 mm | 4490 mm | 5490 mm | 5490 mm |
| Length | 5811 mm | 6112 mm | 6782 mm | 7364 mm |
| Width | 2287 mm | |||
| Engine | E494 4V TCI BS VI (CRS Diesel Engine) | |||
| Max. Power Output | 120 kW @ 2600 rpm | |||
| Max. Torque Output | 500 Nm @ 1200-1800 rpm | |||
| Emission | BS VI | |||
| Fuel Type | Diesel | |||
| Transmission | ET50S7 | |||
| Gear Type | 7 Speed 7 F( 2 overdrive gears) + 1 R | |||
| Clutch Dia | 330 mm | |||
| Gradeability (%) | 23 | |||
| Steering | Tilt and telescopic standard power steering | |||
| Turning Circle Diameter | 17.5 m | 17.5 m | 21.6 m | 21.6 m |
| Ground Clearance | 258 mm | |||
| Battery | 12 V - 100 AH | |||
| Fuel Tank Capacity | Metallic Tank – 190 litres (,5811,6112 mm) , HDPE Polymer – 425 (6782, and 7364 mm) | |||
| Brakes (Service) | air brakes | |||
| Suspension | Front- parabolic with shock absorbers Rear - semi elliptical laminated leaves with helper spring | |||
| Tyre Size | 9.00R20- 16PR | |||
| Cabin | 2.1 m cockpit design sleeper cabin | |||
| Warranty** | 3 years/unlimited km on vehicle | |||
| 4 years/unlimited km on engine and gearbox | ||||
